AH Filter

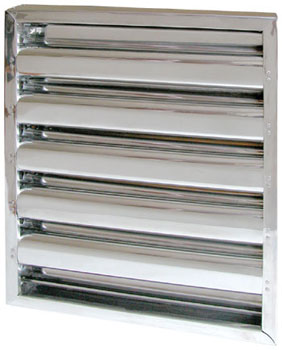

Baffle Type Grease Filter
To reduce fire hazards while promoting kitchen sanitation, the self-draining Kleen-Gard Grease Filters as manufactured by Research Products Corporation are the perfect choice. Heavy duty aluminum or stainless steel construction and unique design give these baffle type filters highly-effective flame arrestor capabilities with a 94%* average grease-removing efficiency (according to testing standard UL 1046). They have an operating range of 150-400 FPM and an optimum face velocity of 300 FPM. (*tested at 300 FPM)
Features at a Glance
- Kleen-Gard is UL Classified and meets requirements of NFPA Standard 96 when properly installed
- Stainless steel provides added durability and corrosion resistance
- Promotes sanitation by removing grease from the air flowing through filters and draining it safely away
- Prevents spread of range-top fires
- Protects blower equipment and prolongs motor life
- Gleaming aluminum or stainless steel construction is attractive and easy to install; just remove and wash
- Two No. 944 Snap-In handles installed
DIMENSIONS
| Aluminum Part# | Stainless Steel Part# | Nominal Size HxWxD | Actual Dim. (inches) Perimeter Tolerance +/- 1/16" Thickness Tolerance +/- 1/32" | Actual Dim. (mm) Perimeter Tolerance +/- 1.6 Thickness Tolerance +/- 0.8" | Filtering Area (square feet) |
| AH2020 | SSH2020 | 20 x 20 x 2 | 19 5/8 x 19 x 5/8 x 1 7/8 | 498.5 x 498.5 x 47.6 | 2.23 |
| AH2016 | SSH2016 | 20 x 16 x 2 | 19 5/8 x 15 5/8 x 1 7/8 | 498.5 x 396.9 x 47.6 | 1.73 |
| AH1620 | SSH1620 | 16 x 20 x 2 | 15 5/8 x 19 5/8 x 1 7/8 | 396.9 x 498.5 x 47.6 | 1.73 |
| AH1220 | SSH1220 | 12 x 20 x 2 | 11 5/8 x 19 5/8 x 1 7/8 | 295.4 x 498.5 x 47.6 | 1.24 |
| AH1216 | SSH1216 | 12 x 16 x 2 | 11 5/8 x 15 5/8 x 1 7/8 | 295.4 x 396.9 x 47.6 | .96 |
| AH1616 | SSH1616 | 16 x 16 x 2 | 15 5/8 x 15 5/8 x 1 7/8 | 396.9 x 396.9 x 47.6 | 1.35 |

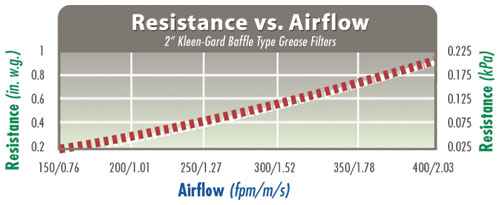

Techinal Data
