PK-ND-2 Q
Exhaust Only Hood

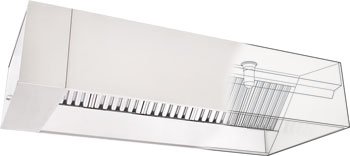

The PK-ND-2 Q model is a wall canopy exhaust-only unit that operates at low CFM. It is ETL listed for use over 450°F, 600°F, and 700°F cooking surface temperatures. Up to 80% make-up air can be supplied through an optional front plenum (PSP Accessory) or up to 80% make-up air and air conditioned air through a dual air stream front perforated stainless steel plenum (AC-PSP Accessory).
Features at a Glance
- Superior exhaust flow rates (A 4' Hood can operate at 150 CFM/Ft. or 600 total CFM.)
- ETL Listed for use over 450°F, 600°F, and 700°F cooking surface temperatures, provides flexibility in designing kitchen ventilation systems. ETL Listed to Canadian safety standards, ETL Sanitation Listed and built in accordance with NFPA 96.
- Aerodynamic design increasing flow and capture rate.
- Standard integral 3" back stand-off.
- Smooth auto-weld technology for aesthetics and rigidity.
- End panels manufactured for structural strength and aesthetics.
- Insulated front design for radiant heat reduction.
- Modular utility cabinet and end stand-offs.
- Deeper and easy to clean grease trough.
- No exterior caulking.
- Easy access hanging angles with structure channels.
- Standard wrapper channel.
- Updated filter bank with zero obstruction to effluents for natural effluent flow to filter bank.
- Concealed filter stops prevent gaps between grease filters.
- Grease trough is forward angled, forcing grease to exit drain tube.
- Front design prevents condensation and directs grease-laden vapors toward the exhaust filter bank.
- Sturdy stainless steel construction with double wall, insulated front panel.
- Factory pre-wired lighting to illuminate the cooking surface.
- Aluminum filters with optional stainless steel, Captrate®, or high velocity cartridge filters.
- Optional integral clearance to combustibles reduction system to meet NFPA 96 requirements.
- Optional UL Listed light and fan control switches flush mounted and pre-wired through electrical chaseway.
- Exceptional capture and containment of cooking vapors.
- Optional ETL Listed exhaust fire damper on the PA-C-2 model.
Options
- Utility Cabinet - ETL Listed for integral side mount on the K-Tech ventilation hood, fabricated of same material as hood. The cabinet can house a factory pre-piped UL Listed fire suppression system* and ETL Listed, pre-wired electrical controls with light switches, lighted fan control switches and internal factory wiring and components (starters, relays, etc.) to reduce field wiring requirements, or the ETL Listed Energy Management System with ETL electrical controls. ETL tests confirm temperatures do not exceed 120°F inside the cabinet during fire condition. (120°F is the maximum allowed storage temperature for the UL Listed fire suppression system and the ETL Listed Industrial control panel.) (*Dimensional restrictions may apply)
- Make-Up Air Options - ACPSP Accessory provides up to 80% make-up air and air conditioned air through a dual air stream, 12" front perforated plenum combination. Stainless steel construction to match the ventilation hood. PSP Accessory provides up to 80% make-up air through a front perforated plenum. Stainless steel construction to match the ventilation hood.
- Removable ETL Listed High-Velocity Cartridge Filter - Constructed of stainless steel. Uses centrifugal force to remove grease and other particulates. National Institute of Standards and Technology methodology used by an independent agency to evaluate performance. Tests indicate 95 percent extraction efficiency.
- Captrate® Filter - Removable Combo Filter which combines stainless steel baffle with a unique high tech patented ceramic filter. Provides highest level of grease removal. Meets UL 1046 and NFPA No. 96 requirements.
- Enclosure Panels - Constructed of stainless steel. Mounting channel factory-welded to hood for field installation of panels over 11" high. If under 11", factory-welded and integrally installed into hood front and ends. Sized to extend from hood top to ceiling, enclosing pipe and hanging parts.
- End Panels - Should be used to maximize hood performance and eliminate the effects of cross drafts in the kitchen. Units constructed of stainless steel and sized according to hood width and cooking equipment. Exposed edges hemmed for safety and rigidity.
- Exhaust Fire Damper - ETL Listed. Installed in exhaust collar. Activated by a ETL Listed, 212°F, 10 lb. minimum rated fusibile link.
- Heated Make-Up Air - ETL Listed direct fired gas heated make-up air unit manufactured by K-Tech. ETL Listed for natural gas and propane. Design integrates the blower and burner into a single package. Heavy duty, weather resistant, galvanized steel construction. Units available in Roof Top Package or as a stand alone heated make-up air module. Several sizes available to meet almost any performance rating specification.
Performance Data
| Model | Configuration | Avg. Cooking Surface Temp. (°F) | Min Exhaust CFM/ft. |
| PK-ND-2 Q | Single Wall Hood | 450°F - Ovens, Steamers, Kettles, Open-Burner Ranges, Griddles, Fryers | 150 |
| PK-ND-2 Q | 2 Wall Hoods Back-to-Back in Island Configuration | 450°F - Ovens, Steamers, Kettles, Open-Burner Ranges, Griddles, Fryers | 300 |
| PK-ND-2 Q | Single Wall Hood | 600°F - Gas Charbroilers, Electric Charbroilers, Woks | 200 |
| PK-ND-2 Q | 2 Wall Hoods Back-to-Back in Island Configuration | 600°F - Gas Charbroilers, Electric Charbroilers, Woks | 400 |
| PK-ND-2 Q | Single Wall Hood | 00°F - Mesquite Grills, Gas Charbroilers, Gas Conveyor Charbroilers | 250 |
| PK-ND-2 Q | 2 Wall Hoods Back-to-Back in Island Configuration | 700°F - Mesquite Grills, Gas Charbroilers, Gas Conveyor Charbroilers | 500 |
| Recommended Duct Sizing: Exhaust based on 1500 FPM. | |||
Construction
- Available in a single wall type or two piece back-to-back island configuration.
- Fabricated of Type 430 Stainless Steel, #3 or #4 polish, on all exposed surfaces.
- Double-wall, insulated front increases rigidity and reduces condensation.
- Fitted with UL Classified, aluminum filters, removable for cleaning. Optional stainless steel and ETL Listed high velocity cartridge filters available. (Model PA-C-2 Q)
- Deep grease drain system, forward angled, with removable cup for easy cleaning.
- Easy access hanging angles with structure channels.
- Optional integral clearance to combustibiles reduction system to meet NFPA 96 requirements.
- Standard built-in 3" rear stand-off.
- Fitted with UL Listed, pre-wired, incandescent light fixtures and plastic-coated glass globes to hold up to a standard 100 watt bulb. Recessed incandescent and recessed fluorescent lights optional.
- A built-in wiring chase provided for optimal positioning of electrical controls and outlets on the front face of the hood without penetrating capture area or requiring external chaseway.
- Optional ETL Listed exhaust fire damper (Model PK-ND-2).
- Model PK-ND-2 Q is ETL Listed for 450°F, 600°F, and 700°F cooking surfaces. ETL Sanitation Listed and built in accordance with NFPA Standard 96.

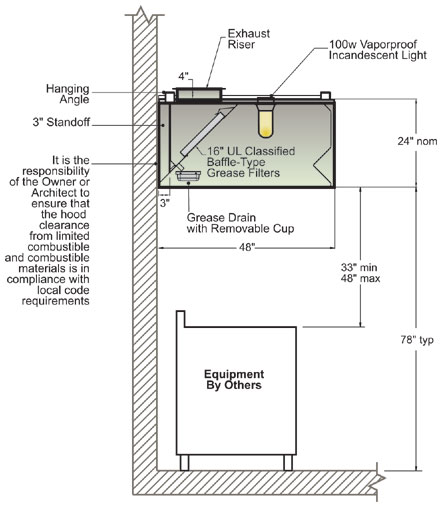

Sectional View
The PK-ND-2 Q Model has been certified by ETL. This certification mark indicates that the product has been tested to and has met the minimum requirements of a widely recognized (consensus) U.S. and Canadian products safety standard, that the manufacturing site has been audited, and that the applicant has agreed to a program of periodic factory follow-up inspections to verify continued performance.
