PLL Q

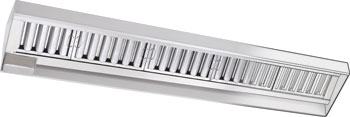

Low Proximity Passover Exhaust Hood





K-Tech’s ETL-listed PLL Q Low Proximity Passover Exhaust Hood has extremely low minimum exhaust CFM requirements.

The K-Tech PLL Q hoods can be used as a plate shelf. The low hanging height reqirement allows for Passover designs. These hoods are ideal for concession stands.

Features at a Glance
  • ETL Listed for use over 400°F cooking surfaces. ETL Listed to Canadian safety standards, ETL Sanitation Listed and built in accordance with NFPA 96.
  • Low exhaust CFM required.
  • Sturdy stainless steel construction.
  • Space saving, compact design uses limited kitchen space.
  • Can screw mount to wall with built in top flange.


Requirements
  • Exhaust fan must remain in operation 30 minutes after cooking equipment shut down to prevent accidental discharge of fire system.
  • This model is not designed to ventilate heavy charbroilers.
  • Ceiling and equipment height must be provided to determine hanging height and enclosure panel sizing.
  • Hood may underhang equipment by maximum 4.5". Side Clearance is 2".


Options
  • Enclosure Panels - Constructed of stainless steel. Mounting channel factory-welded to hood for field installation of panels over 11" high. If under 11", factory-welded and integrally installed into hood front and ends. Sized to extend from hood top to ceiling, enclosing pipe and hanging parts.
  • Heated Make-Up Air - ETL Listed direct fired gas heated make-up air unit manufactured by K-Tech. ETL Listed for natural gas and propane. Design integrates the blower and burner into a single package. Heavy duty, weather resistant, galvanized steel construction. Units available in Roof Top Package or as a stand alone heated make-up air module. Several models available to meet almost any performance rating specification.
  • Removable ETL Listed High-Velocity Cartridge Filter - Constructed of stainless steel. Uses centrifugal force to remove grease and other particulates. National Institute of Standards and Technology methodology used by an independent agency to evaluate performance. Tests indicated 95 percent extraction efficiency.
  • Captrate® Filter - Removable Combo Filter which combines stainless steel baffle with a unique high tech patented ceramic filter. Provides highest level of grease removal. Meets UL 1046 and NFPA No. 96 requirements.


Performance Data
Model Type Average Cooking Surface Temperature (°F) - Cooking Surfaces Min Exhaust CFM/ft.
PLL Q Wall Hood 400°F - Ovens, Steamers, Kettles, Open-Burner Ranges, Griddles, Fryers 110


Construction
  • Low proximity, passover type hood.
  • Fabricated of Type 430 stainless steel, #3 or #4 polish, on all exposed surfaces. Optional type 304 stainless steel available.
  • Fitted with stainless steel baffle filters for improved grease removal efficiency.
  • Sloped grease drain system with removable 1/2 pint cup for easy cleaning.
  • Model PLL Q is ETL Listed for 400°F cooking surface, ETL Listed to Canadian safety standards, ETL Sanitation Listed and built in accordance with NFPA Standard 96.

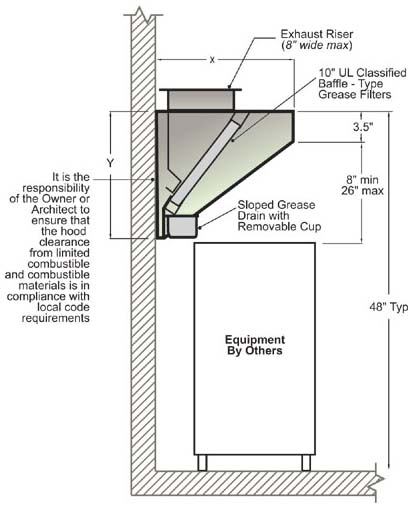

Sectional View

PLL Q



Certifications
The PLL Q Model has been certified by ITS. This certification mark indicates that the product has been tested to and has met the minimum requirements of a widely recognized (consensus) U.S. and Canadian products safety standard, that the manufacturing site has been audited, and that the applicant has agreed to a program of periodic factory follow-up inspections to verify continued performance.

Models PLL Q are ETL Listed under file number 3054804-001 and complies with UL710 Standards and ULC710 Standards.
