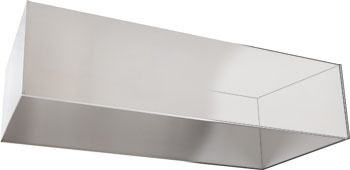

P-VH
Single Wall Exhaust Only Vent Hood
Make-up air is typically not required due to low volume of exhaust.
Features at a Glance
- Low initial and installation costs.
- Extremely low exhaust CFM requirement.
- Available in wall type or one-piece island.
- Available in two designs.
- ETL Sanitation Listed.
Options
- Optional 4-sided condensate gutter and single drain
Performance Data
| Model | Configuration | Loads | Cooking Surface | Exhaust CFM/Ft. |
| P-VH | Wall Hood, One Piece Island | Light | Ovens, Rotisseries | 100 |
| P-VH | Wall Hood, One Piece Island | Light | Ovens, Rotisseries | 100 |
| Recommended Duct Sizing: Exhaust based on 1500 FPM. | ||||
Construction
- Single wall type hood with no built-in make-up air capabilities.
- Available in wall type or one-piece island form.
- Fabricated of Type 304 stainless steel, #3 or #4 polish, on all exposed surfaces.
- Pre-punched hanging angles on each end of hood. Additional set provided for hoods longer than 12'.
- Optional integral 4-sided condensate gutter and 1 drain.

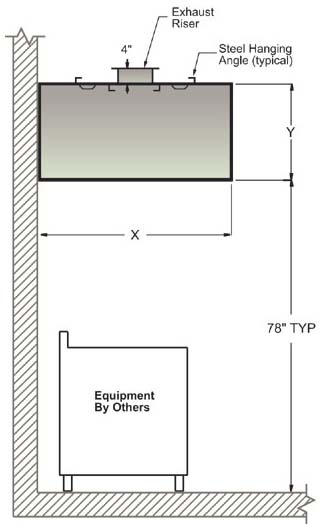

Sectional View
